Welded screens in stock dimensions

USE

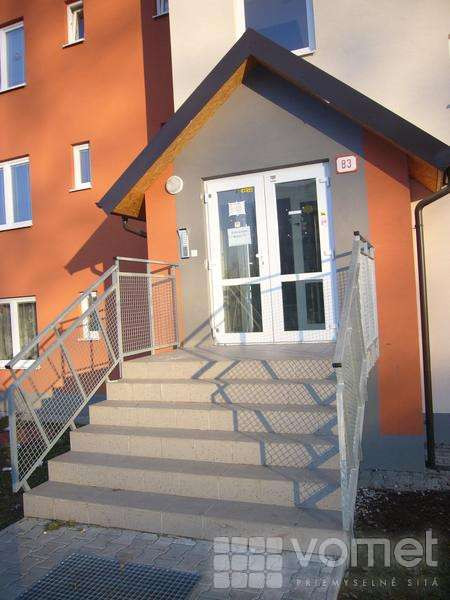

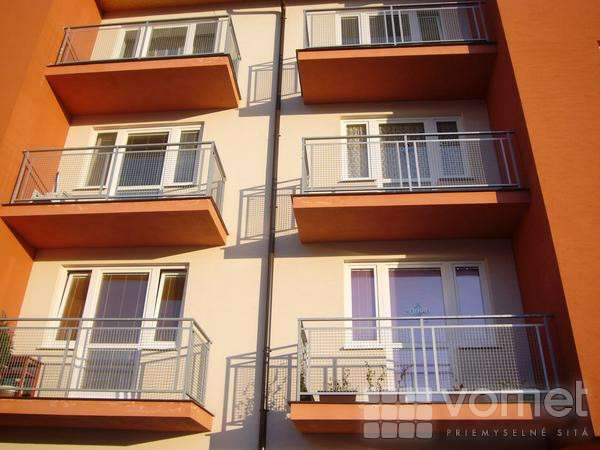

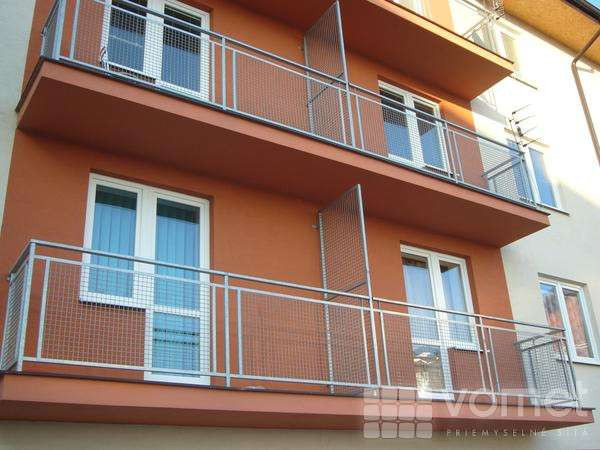

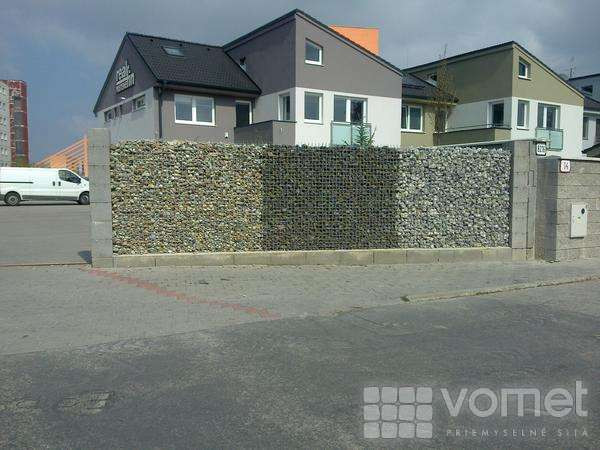

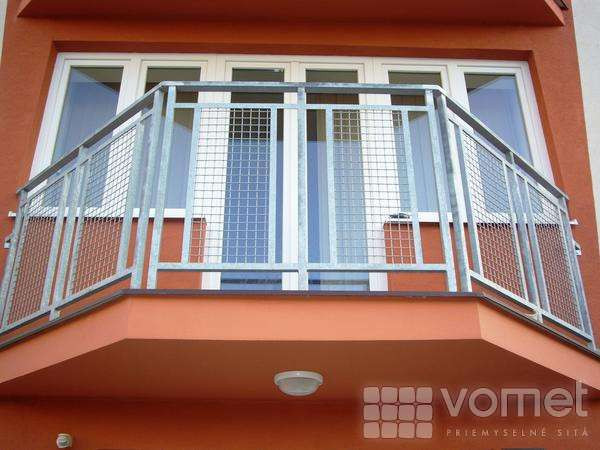

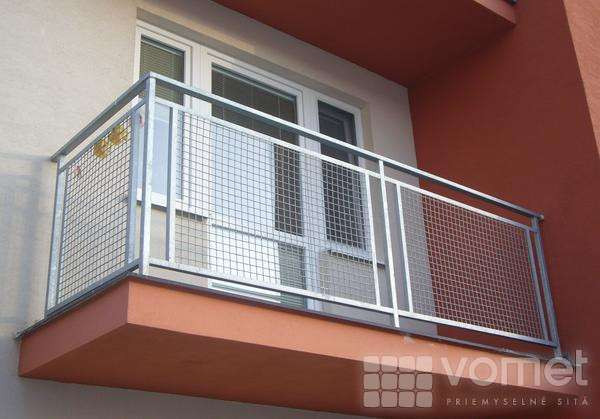

Screens are suitable for production of transport pallets, covers, cages, metal furniture, panels, cages for fur animals breeding, wire netting, building interiors, decorations, nets for concrete products, templates for floor heating, industrial floors, cable trays, pergolas, fencing, warehouse elements, storage pallets, protective barriers, machine fencing, wide use in agriculture.

MATERIAL

Black steel and stainless steel wire


PRODUCTION OPTIONS

  • a combination of different wire diameters
  • a combination of different lengths of longitudinal and cross wires
  • trims around perimeter wires
  • cut-outs on the corners and edges of screens

MESH SIZE

It can be changed according to customer‘s requirements.

PRODUCTION

Welded screens are produced by spot resistance welding on SCHLATTER machines. These machines are characterized by high precision and high productivity.

TIP

Welded screens have a very wide application due to different possible combinations of mesh size and wire diameters. It is possible to choose from a wide range of square, but also rectangular meshes.

ITEMS IN STOCK - material – black steel 11343

Screens dimensions (mm) Mesh size (mm) Wire diameter (mm) Weight (kg)
longitudinal cross longitudinal cross longitudinal cross pcs
2000
700 20
20
2 2 3,39
2000
800 25 25 3 3 6,95
2000 1000 30 30 3 3 7,34
2000 1000 40 40 3 3 5,38
2500 1250 40 40 3 2 8,60
3000 1500 40 40 3 3 12,32
2000 1000 40 40 4 4 9,57
2500 1250 40 40 4 4 15,29
3000 1500 40 40 4 4 21,90
2000 1000 50 50 3 3 4,27
2500 1250 50 50 3 3 6,73
3000 1500 50 50 3 3 9,74
2000 1000 50 50 4 4 7,60
2500 1250 50 50 4 4 11,96
3000 1500 50 50 4 4 17,31
2000 1000 50 50 5 5 11,87
2500 1250 50 50 5 5 18,80
3000 1500 50 50 5 5 27,05
2000 1000 20 50 3 3 7,60
2000 1000 20 100 3 3 6,60
2000
1000
50
100
4
4
5,82
2000
1000
100
100
5
5 6,17
  • tolerance +/- 3 mm
  • screen with an overlap
  • mesh measured on the wire centre
  • * For other sizes please contact our sales department.

ITEMS IN STOCK - material – welded, from galvanized wire

Screens dimensions (mm) Mesh size (mm) Wire diameter (mm) Weight (kg)
longitudinal cross longitudinal longitudinal longitudinal longitudinal pcs
2000 1000 30 30 3 3 7,34
2000 1000 40 40 4 4 9,57
2000 1000 50 50 4 4 7,6
  • tolerance +/- 3 mm
  • screen with an overlap
  • mesh measured on the wire centre
  • * For other sizes please contact our sales department.

ITEMS IN STOCK - material – stainless steel 1.4301

Screens dimensions (mm) Mesh size (mm) Wire diameter (mm) Weight (kg)
longitudinal cross longitudinal cross longitudinal cross pcs
2000 1000 20 20 2 2 4,80
2000 1000 30 30 3 3 7,34
2000 1000 40 40 3 3 5,38
2000 1000 50 50 3 3 4,27
2000 1000 50 50 4 4 7,60
  • tolerance +/- 3 mm
  • screen with an overlap
  • mesh measured on the wire centre
  • * For other sizes please contact our sales department.


Consultancy and advisory services


How to choose the right product?

If you need advice, don't hesitate to ask!

We will answer your questions and help you with every step in the selection of material as well as project implementation.

  • we provide technical information and documentation
  • we provide advice on the right selection and use of materials
  • we provide technical recommendation and solutions
  • consultation on application and suitability of our products
