Square fencing
Square fencing

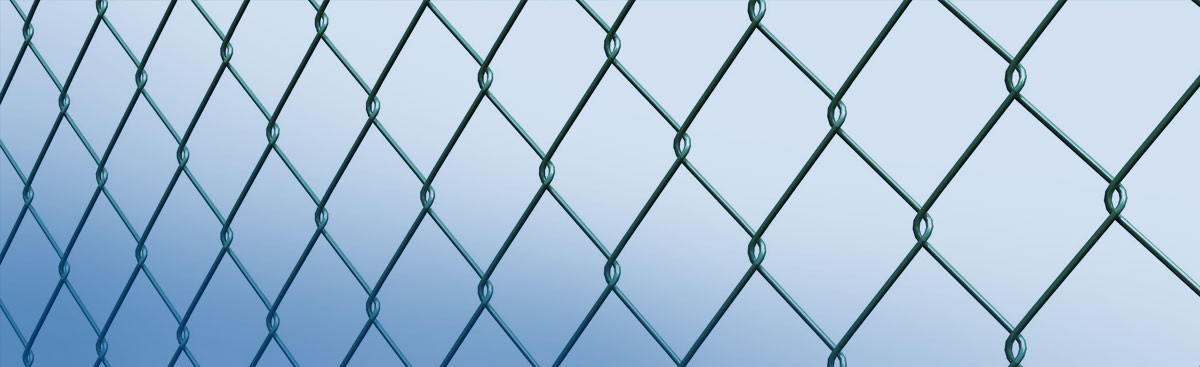

Square fencing is made of steel, galvanized or plastic-coated wire (dark green colour - RAL 6005). Fencing with its properties meet all the requirements for its use, durability, aesthetics and quality.
USE
Because of its feature of good terrain copying, this type of fence is suitable to be used in agriculture, forestry or for animal aviaries as sectoral barriers in forest and pastures.
ACCESORIES
- Posts
- Accesories to fencing and posts type A1, B1, ZN
- BAVOLETs
- Barbed wire
SPECIFICATION (TECHNICAL PARAMETERS)
| Wire diameter (mm) |
Mesh size (mm) |
Height (cm) |
Packeging (m) |
|
Zn (galvanized wire) with a small mesh
|
|||
| 1,4 | 10x10 | 100 | 10 |
|
|
12x12 | 100 | 10 |
| 1,6 | 16x16 | 100 | 10 |
| 1,6 | 16x16 | 160 | 25 |
| 2 | 100 | 10 |
|
| 2 | 20x20 | 160,2 | 25 |
| 2 | 30x30 | 100 | 25 |
| 2,2 | 40x40 | 100,15 | 25 |
|
Zn (galvanized wire) standard
|
|||
| 2,2 | 50x50 | 100,125,150,160,180,200 | 15,25 |
|
|
55x55 |
|
|
|
|
60x60 | 100,125,150,160,180,200 | 15,25 |
|
Zn (galvanized wire) from thicker wires
|
|||
| 2,5 | 50x50 | 100,125,150,160,180,200 | 15,25 |
| 2,8 | 50x50 | 100,125,150,160,180,200 | 15,25 |
| 3,1 | 50x50 | 100,125,150,160,180,200 | 15,25 |
| 2,5 | 60x60 | 100,125,150,160,180,200 | 15,25 |
| 2,8 | 60x60 | 100,125,150,160,180,200 | 15,25 |
| 3,1 | 60x60 | 100,125,150,160,180,200 | 15,25 |
|
Zn (galvanized wire) with a large mesh
|
|||
| 3,1 | 80x80 | 100-400 | 5,10,15,20,25 |
|
|
100x100 | 100-400 | 5,10,15,20,25 |
| 150 x 150 | 100-400 | 5,10,15,20,25 | |
| 4 | 100 x 100 | 100-400 | 5,10,15,20,25 |
| 150 x 150 | 100-400 | 5,10,15,20,25 | |
| 5 | 100 x 100 | 100-400 | 5,10,15,20,25 |
| 150 x 150 | 100-400 | 5,10,15,20,25 | |
|
PVC (galvanized and then PVC coated wire) with a small mesh
|
|||
| 2 | 100 | 10 |
|
|
PVC (galvanized and then PVC coated wire)
|
|||
| 2,5 | 40x40 | 100,150,200 | 15,25 |
| 3,00 (tenisové kurty) | 45x45 | 300,4 | 18 |
| 2,5 | 50x50 | 100,125,150,
160,180,200 |
15,25 |
| 2,5 | 60x60 | 100,125,150,
160,180,200 |
15,25 |
|
PVC (galvanized and then PVC coated wire) from thicker wires
|
|||
| 2,80 (1,80/2,80) | 50x50 | 100,125,150,
160,180,200 |
15,25 |
| 3,00 (2,00/3,00) | 50x50 | 100,125,150,
160,180,200 |
15,25 |
| 3,40 (2,20/3,40) | 50x50 | 100,125,150,
160,180,200 |
15,25 |
| 3,50 (2,50/3,50) | 50x50 | 100,125,150,
160,180,200 |
15,25 |
| 3,00 (2,00/3,00) | 60x60 | 100,125,150,
160,180,200 |
15,25 |
| 3,40 (2,20/3,40) | 60x60 | 100,125,150,
160,180,200 |
15,25 |
| 3,50 (2,50/3,50) | 60x60 | 100,125,150,
160,180,200 |
15,25 |
| 4,00 (3,00/4,00) | 80x80 | 100,125,150,
160,180,200 |
15,25 |
|
PVC (galvanized and then PVC coated wire) with a large mesh
|
|||
| 3,5 | 100x100 | 100-400 | 5,10,15,20,25 |
|
|
150x150 | 100-400 | 5,10,15,20,25 |
| 4 | 80x80 | 220 | 5,10,15,20,25 |
|
|
100x100 | 100-400 | 5,10,15,20,25 |
| FE with a large mesh
|
|||
| 3,1 | 100x100 | 100-400 | 5,10,15,20,25 |
|
|
150x150 | 100-400 | 5,10,15,20,25 |
| 4 | 100x100 | 100-400 | 5,10,15,20,25 |
|
|
150x150 | 100-400 | 5,10,15,20,25 |
| 5 | 100x100 | 100-400 | 5,10,15,20,25 |
|
|
150x150 | 100-400 | 5,10,15,20,25 |
| 6 | 100x100 | 100-400 | 5,10,15,20,25 |
|
|
150x150 | 100-400 | 5,10,15,20,25 |
